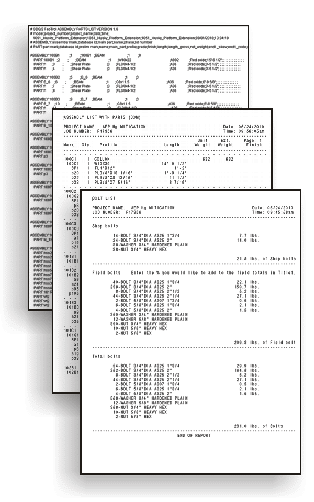

Prism Steel Detailing offers a full suite of Fabricator and Erector Support Services to ensure the fabrication and erection process goes as smoothly as possible. These services consist of preparing complete and accurate reports, CNC files, and material interchange files for the shop and field.  The majority of this information is exported directly from the BIM (Building Information Model) to insure 100% coordination with the the fabrication drawings.  Some specific items that are available include:

  • - Bills of Material
  • - Bolt Lists
  • - Drawing Lists
  • - Fabtrol Material Files
  • - CNC Production Files
  • - DXF Fabrication Files
  • - 3D Interactive Erection Reference Models

The best part is that most of these items are automatically included free of charge when your project is detailed by Prism Steel Detailing.  However, it is always best to inform us up front which services you are interested in or require.
